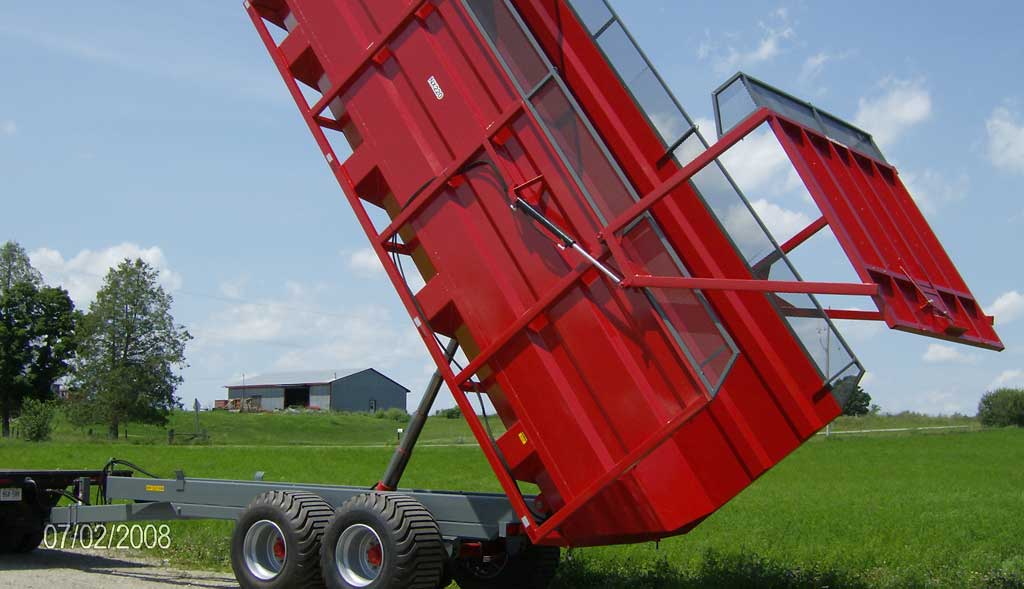

DT240 Specifications
Capacity 40,000 lb. / 20 tons
Box Size 24' x 8.5'
Side Height 80"
Overall Height 54" + side
Volume 1400 cu. ft.
Volume with ext. 1900 cu. ft. with 22" mesh extension
Axle Type walking tandem
Tire Size 700/40x22.5
Tilt Angle 55°
Hoist 7” 5 sec. 110” stroke
Oil Volume 39.9L
Jack 12,000 lb drop leg
Lights and Signals optional
Tailgate Hydraulic
Floor Plate 3/16"
Whitewater Welding reserves the right to change specifications without notice.
