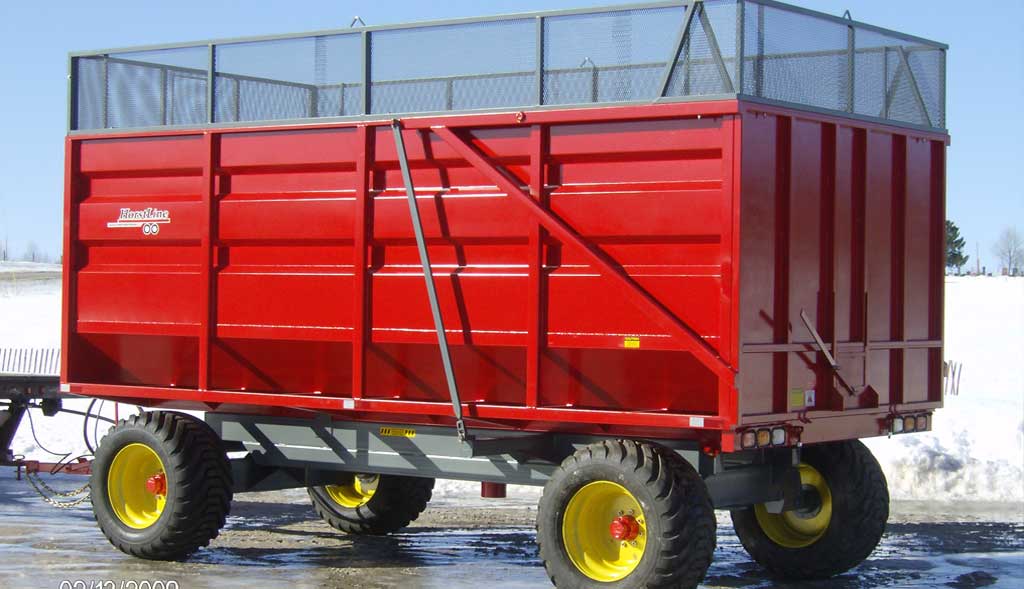

DW180 Specifications
Capacity 32,000 lb. / 16 tons
Box Size 18' x 8'
Side Height 60"
Overall Height 50" + side
Volume 720 cu. ft.
Volume with ext. 1,000 cu. ft. with 24" mesh extension
Axle Type 18-Ton Horst Wagon
Tire Size 425/65R22.5
Tilt Angle 55°
Hoist 6” 4 sec. 72” stroke
Oil Volume 21.7L
Jack N/A
Lights and Signals optional
Tailgate self-opening
Floor Plate 10g
Whitewater Welding reserves the right to change specifications without notice.
